| 起源の場所: | ウーハン、中国 |
|---|---|
| ブランド名: | BonninTech |
| 証明: | CE, ISO |
| モデル番号: | UV-Q |
| 最小注文数量: | 1セット |
| 価格: | USD2000-8000/set |
| パッケージの詳細: | 標準輸出用紙箱 |
| 受渡し時間: | 5～10日 |
| 支払条件: | T/T |
| 供給の能力: | 200セット/月 |
| 照射の強度: | 0.35～1.0W/㎡ | 温度範囲: | Rt+10℃~70℃ |
|---|---|---|---|
| 機器名: | UV 紫外線ランプチャンバー | 保証: | 12か月、寿命のテクニカル サポート |

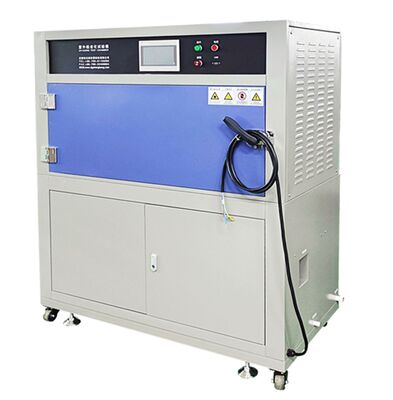

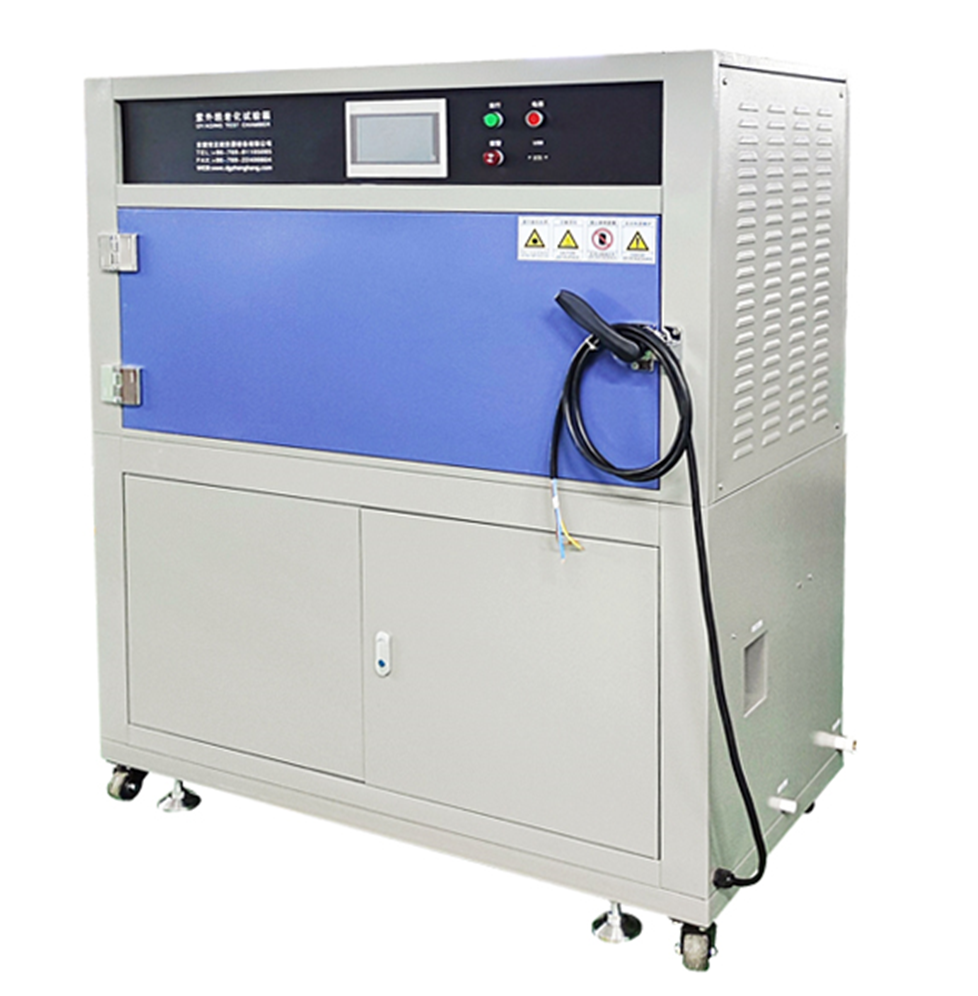

UV-Q Plastic Accelerated Aging Test Chamber with Q-Lab UV Lamp ASTM G154
| 1.1 Equipment Application | This equipment is designed to simulate the ultraviolet radiation and condensation found in natural sunlight, facilitating accelerated weathering tests on materials to assess their durability. It is capable of simulating various environmental conditions characteristic of natural climates—including UV exposure, rainfall, high temperatures, high humidity, condensation, and periods of darkness. By reproducing these conditions and integrating them into a single cycle, the system executes the specified number of cycles automatically. |
| 1.2 Applicable Standards | Applicable standards include: ASTM G154 (Standard Practice for Operating Fluorescent Ultraviolet Lamp Apparatus for Exposure of Nonmetallic Materials); GB/T 16422.3 (Plastics—Methods of Exposure to Laboratory Light Sources); GB/T 16585 (Vulcanized Rubber—Artificial Weathering Test Method: Fluorescent UV Lamp); and other related standards. |
| 2 Dimensions and Specifications | |
| 2.1 Inner Chamber Dimensions |
W1140*H500*D500mm(Effective irradiation area: approx. 3600 cm²; the perforated flat sample rack accommodates irregularly shaped samples.)
|
| 2.2 Outer Dimensions | W1300*H1600*D700mm Excluding protruding parts; please refer to the actual product. |
| 2.3 Sample Details | The samples placed within the test space shall occupy no more than three-quarters of the total volume, and shall constitute a non-heating load. |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
